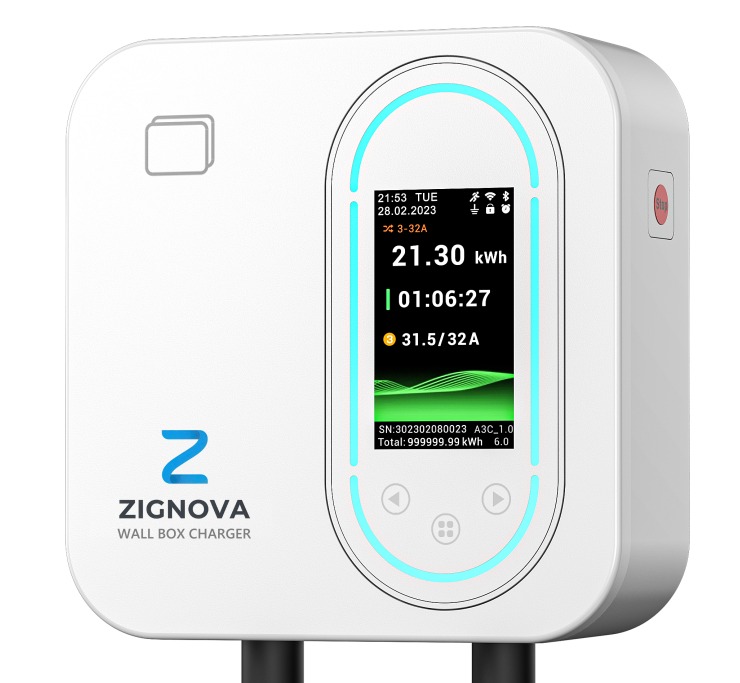

Zignova EVE Series: The Ultimate Smart EV Charging Solution for UAE Homeowners
Are you looking for a reliable, high-performance private home charger for your electric vehicle in the UAE? Whether you reside in a luxury villa in Abu Dhabi, a high-rise in Dubai, or a family home in Sharjah, Al Ain, Ajman, Umm Al Quwain, or Ras Al Khaimah, the Zignova EVE Series is engineered to meet the specific demands of the Middle Eastern climate.
Distributed and installed by EV SHIELD, we provide a full turnkey solution, combining Zignova’s world-class technology with our 10+ years of authority approval expertise.
Why Zignova is the Perfect Fit for the UAE Market
The Zignova EVE Series (7.7kW, 11kW, and 22kW) is designed to thrive in the UAE’s unique environment:
- Extreme Temperature Resilience: With an operating range of -30 degree to +55 degree this charger maintains peak performance even during the peak of the UAE summer.
- Weatherproof Durability: Featuring an IP 65 protection degree, the unit is fully protected against dust and high-pressure water jets, essential for outdoor installations in sandy or humid coastal areas.
- Smart Energy Management: Includes Dynamic Load Balancing (DLB) via the optional EM3-Box, ensuring your home’s electrical grid isn’t overloaded when your AC units are running at full capacity.

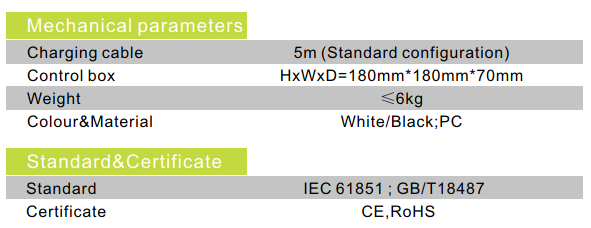

- Compact Design: The control box measures 180X180X70 mm, offering a sleek, space-saving profile for any garage or parking bay.
Advanced Electrical Safety & Protection

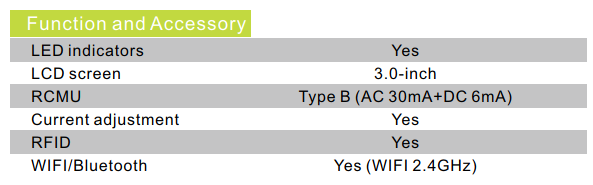

Safety is the core of the Zignova design. The unit features a Type B RCMU (AC 30mA + DC 6mA) leakage protection system, which is essential for modern EV safety standards.

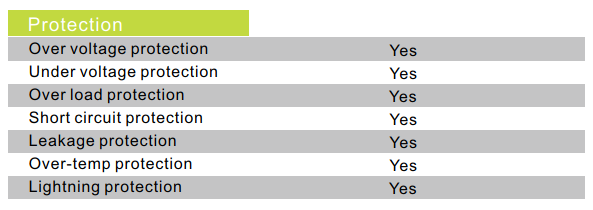

- Comprehensive Defense: Integrated Over-voltage, Under-voltage, Over-load, Short-circuit, and Lightning protection shield both the charger and your vehicle from electrical faults.
- Thermal Monitoring: Over-temp protection automatically monitors the unit during intense operation.

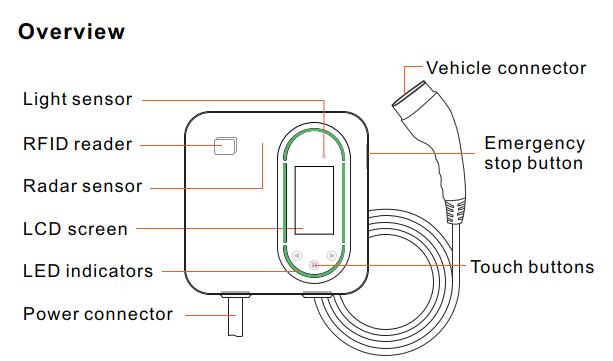

- Emergency Control: A prominent side-mounted Emergency Stop Button allows for immediate manual power cutoff if required.
- Grounding Versatility: Includes a Grounding selection feature in the settings to handle unstable power supplies or ungrounded grids common in older residential areas.

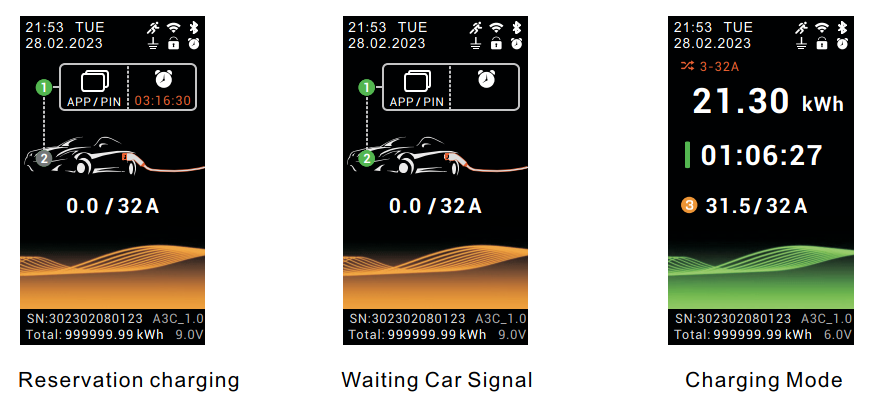

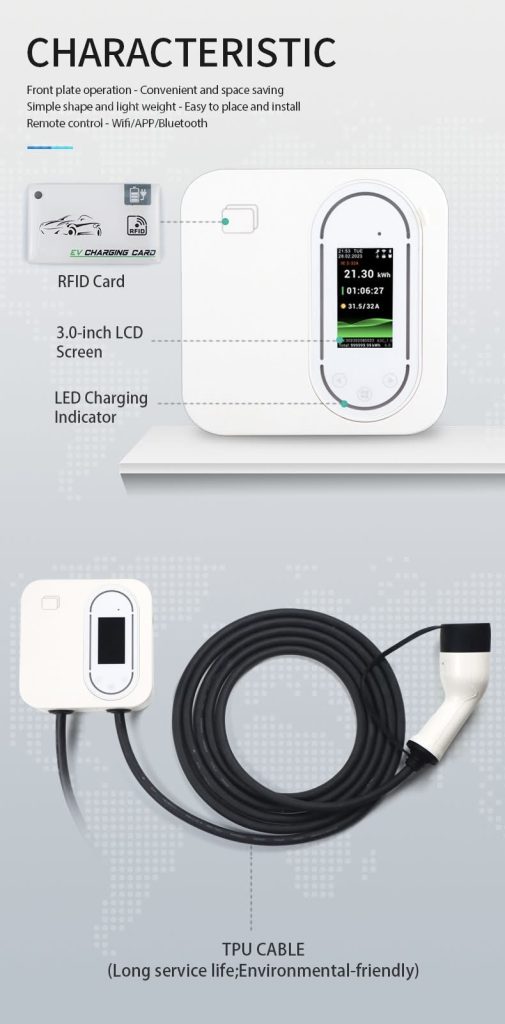

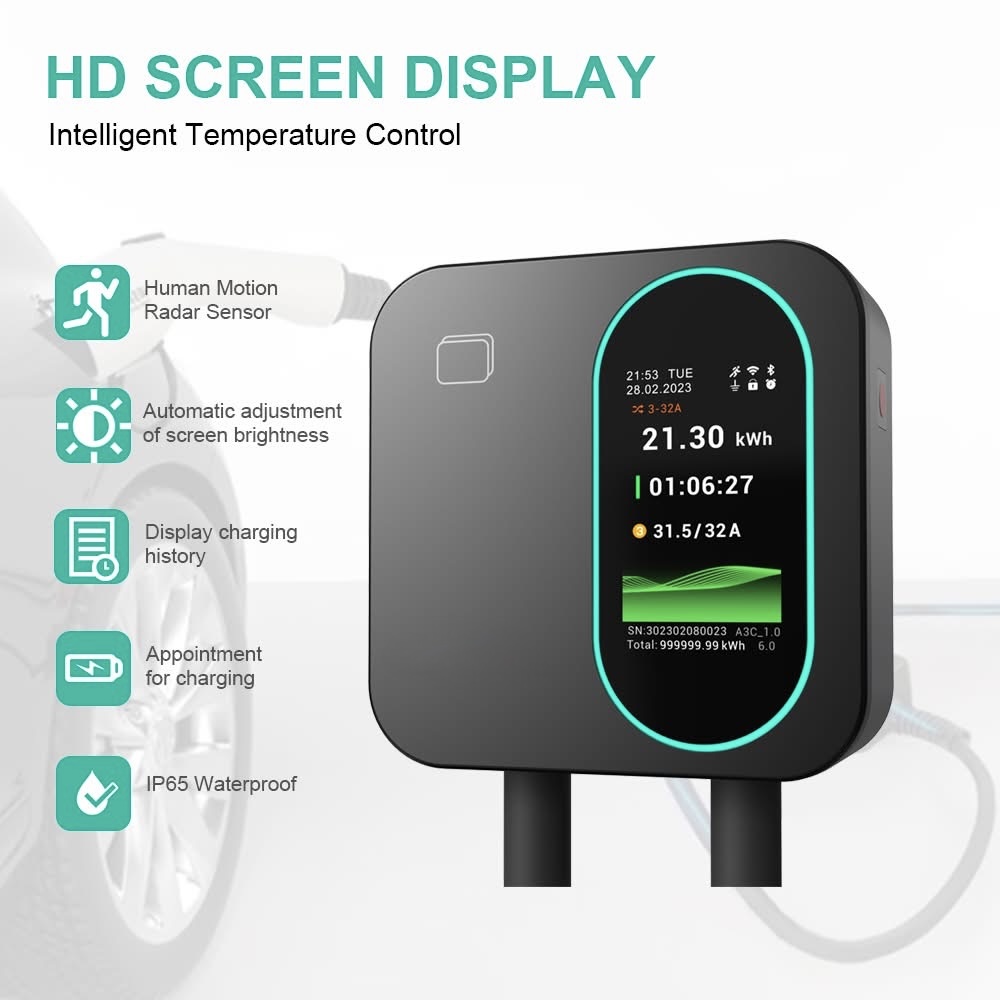

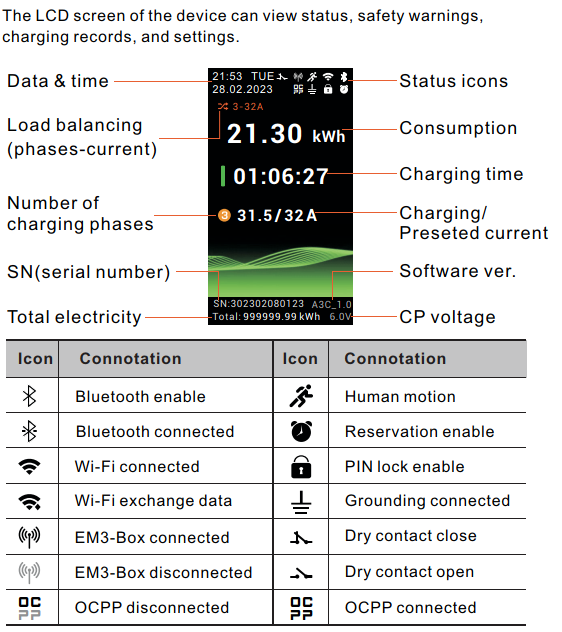

Smart 3.0-inch LCD & User Interface
The high-definition display provides full transparency over your charging session, eliminating guesswork.
- Real-Time Data: View live Voltage and Current for each individual phase (L1, L2, L3), as well as charging power and ambient brightness.
- Consumption Tracking: Displays precise kWh consumption, charging time, and total electricity used, perfect for tracking monthly energy costs.
- Status Icons: Visual indicators show Wi-Fi/Bluetooth connectivity, Human motion detection (via radar sensor), Reservation status, and OCPP connectivity.
- Diagnostic Feedback: The screen displays specific Fault Codes and handling methods (e.g., Code 0010 for Leakage) to assist in quick troubleshooting.
- Proximity Sensor: The screen automatically lights up when a person is within 5 meters, making it easy to use in dark garages.
Premium Charger Features
- Current Adjustment: Manually set the Maximum input current (from 6A to 32A) to match your villa’s available electrical load.
- Triple Reservation Mode: Program up to three different charging schedules to take advantage of off-peak electricity hours.
- Authorization Modes: Choose between secure RFID Card access, App-based control, or simple Plug & Charge for restricted or open access.
- Dry Contact Control: Externally control the start/stop, pause, or limit output current to 6A through a dry contact interface.
- App Connectivity: Full control via the EV-Charger App, allowing for remote monitoring, firmware updates, and OCPP configuration.
Broad EV Compatibility in the UAE
The Zignova EVE is a universal solution supporting Type 1 (SAE J1772), Type 2 (IEC 62196-2), and GB/T interfaces. It is the ideal partner for:
- Tesla Enthusiasts: Full support for Model 3, Model Y, Model S, and Model X.
- European Luxury: Seamlessly charges the Porsche Taycan, Audi e-tron, Mercedes EQS, and BMW i7.
- Emerging Brands: Optimized for BYD (Atto 3, Han, Seal), MG (ZS EV, Marvel R), and Lotus Eletre.
- Performance Models: Compatible with high-power requirements of the Lamborghini Lanzador and Lucid Air.
- Hybrid (PHEV) Support: Ideal for the Toyota Prius PHEV, Mitsubishi Outlander PHEV, and Range Rover Autobiography.
The EV SHIELD Installation Advantage
With over 200+ private villa installations across Abu Dhabi, Dubai, and the Northern Emirates, EV SHIELD provides the professional expertise required for Zignova products.
- Turnkey Engineering: We manage the entire process, from Electrical Load Studies to Drawing Preparation.
- Authority Approvals: We are experts in securing DEWA, TAQA, ADDC, and SEWA approvals and NOCs.
- Custom Civil Works: We offer EV charger shades, parking shades, bollards, and signage boards to protect your investment.
- Service & Support: Our team provides AMC service support, charger shifting, and specialized consultation services.
Contact EV SHIELD today at projects@evshield.ae for a professional site survey.
